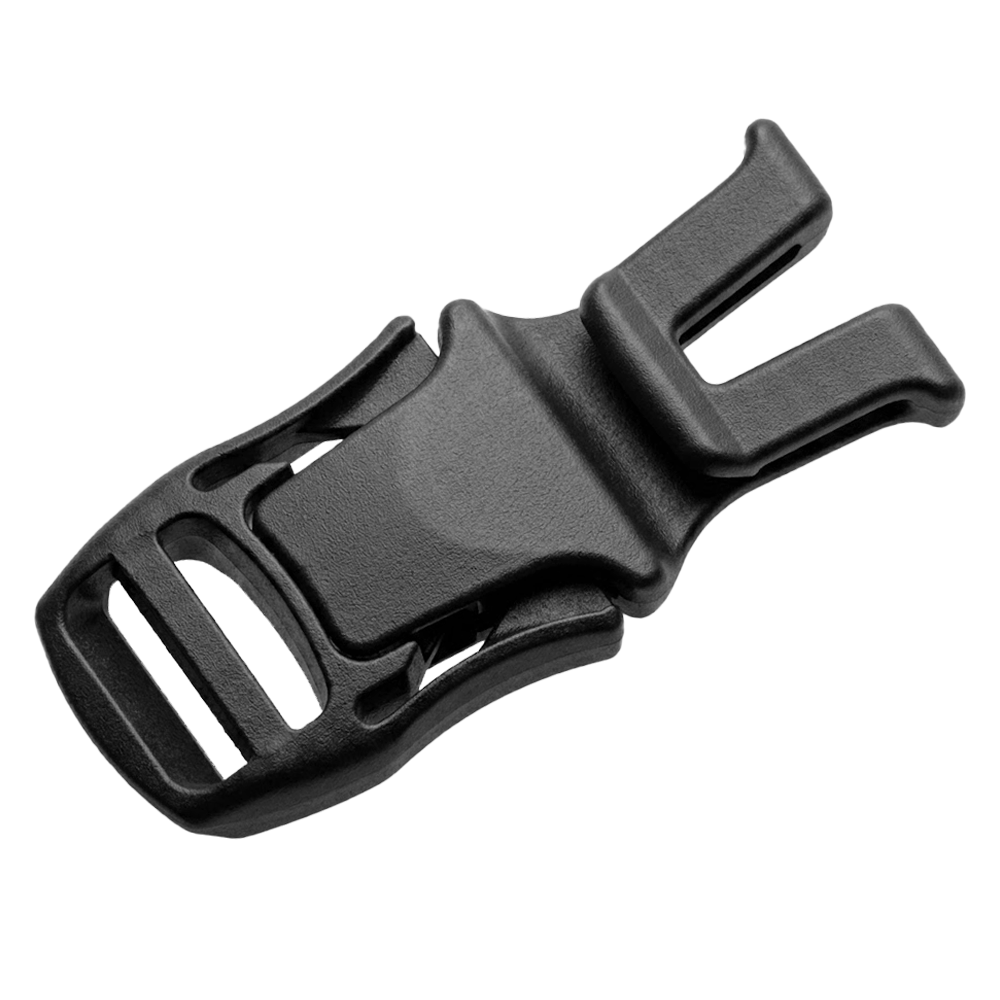

Evo SR Body Clip

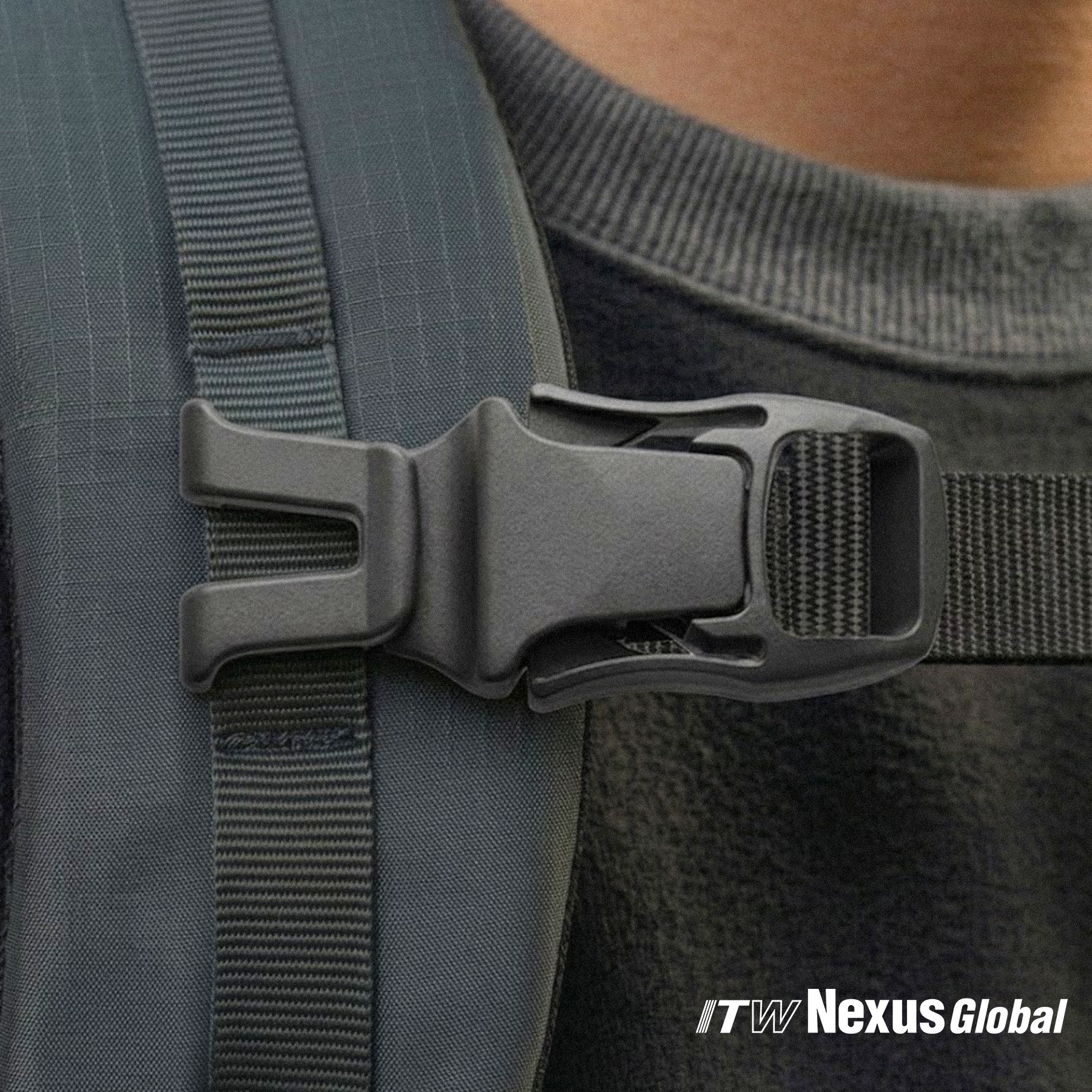

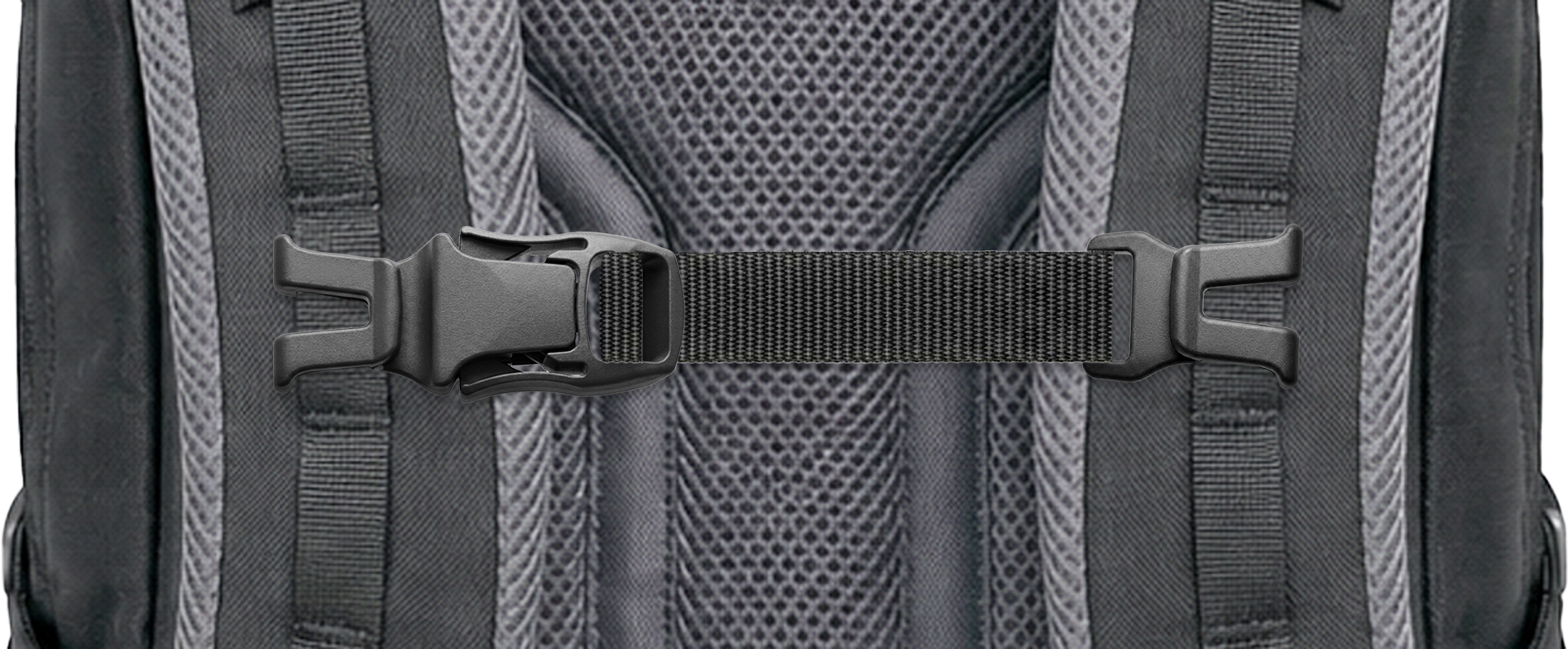

The Evo SR Body Clip provides a secure, adjustable sternum strap attachment solution for packs and equipment featuring MOLLE-style webbing. Designed to pair with Evo SR latches, including the WhistleLoc, it enables quick one-handed buckling and release. The clip allows sternum straps to be easily installed, repositioned, and adjusted while maintaining a reliable connection to shoulder strap webbing. Ideal for streamlined pack designs, the Evo SR Body Clip combines modular adjustment with intuitive user interaction.
The clip is designed for webbing 8-10mm wide and 1-2mm thick.

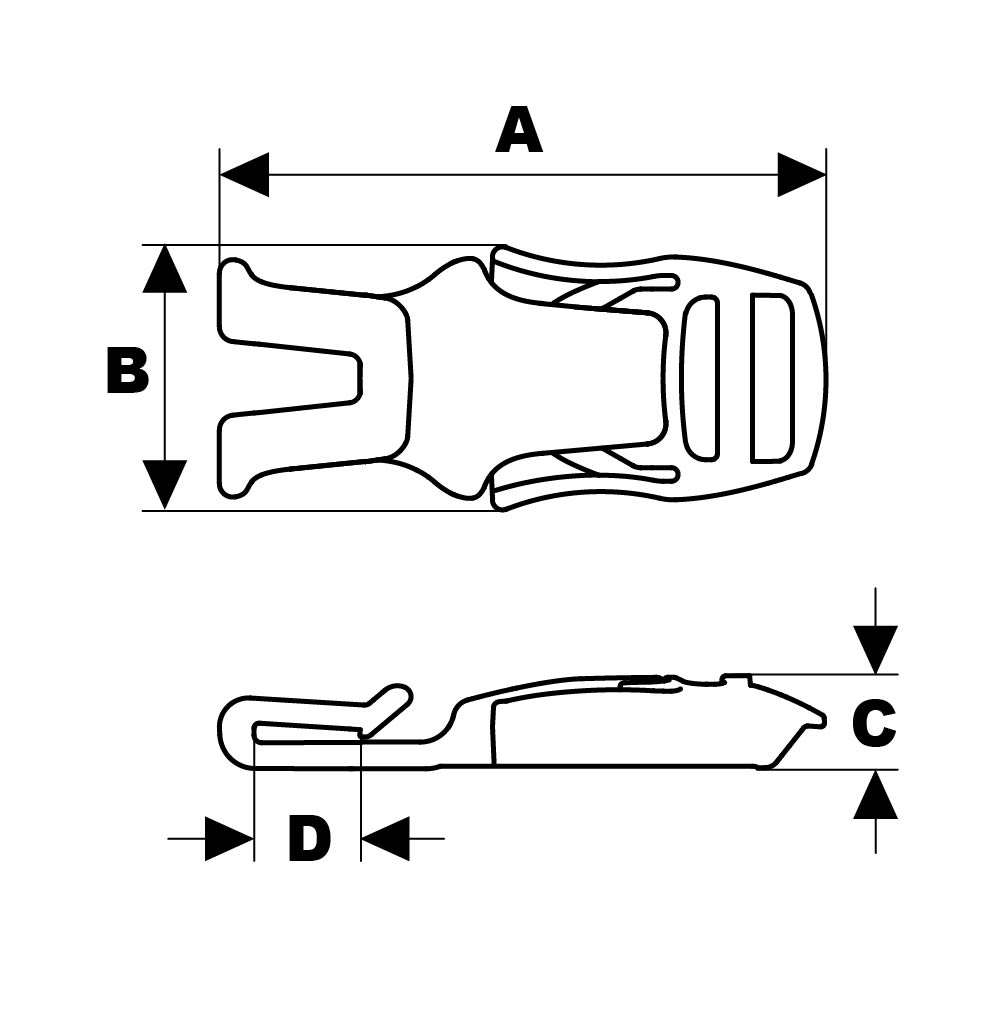

| Description | Latch P/N | Body P/N | MATERIAL | COLOR | A | B | C | D |
|---|---|---|---|---|---|---|---|---|
| 10mm Evo SR Body Clip | 410-1400 | 410-7400 | Acetal | Black | 53.0 | 18.5 | 7.6 | 10.2 |
| 15mm Evo SR Body Clip | 410-1001 | 410-7000 | Acetal | Black | 60.1 | 24.4 | 9.3 | 10.7 |
