WhistleLoc LS
The WhistleLoc LS is the next-generation whistle buckle, which builds on the successes of the original ITW Nexus Whisteloc. The new, patent-pending whistle function is easier and more natural to use. The part's overall length is shorter, allowing for increased webbing adjustment of the sternum strap. The Whistleloc LS employs an "open-chamber construction", which allows for easy cleaning of dirt or debris. The new whistle position allows designers to orientate for left or right-handed applications. Similarly, the symmetric design of the latch allows it to be sewn in any orientation during production.

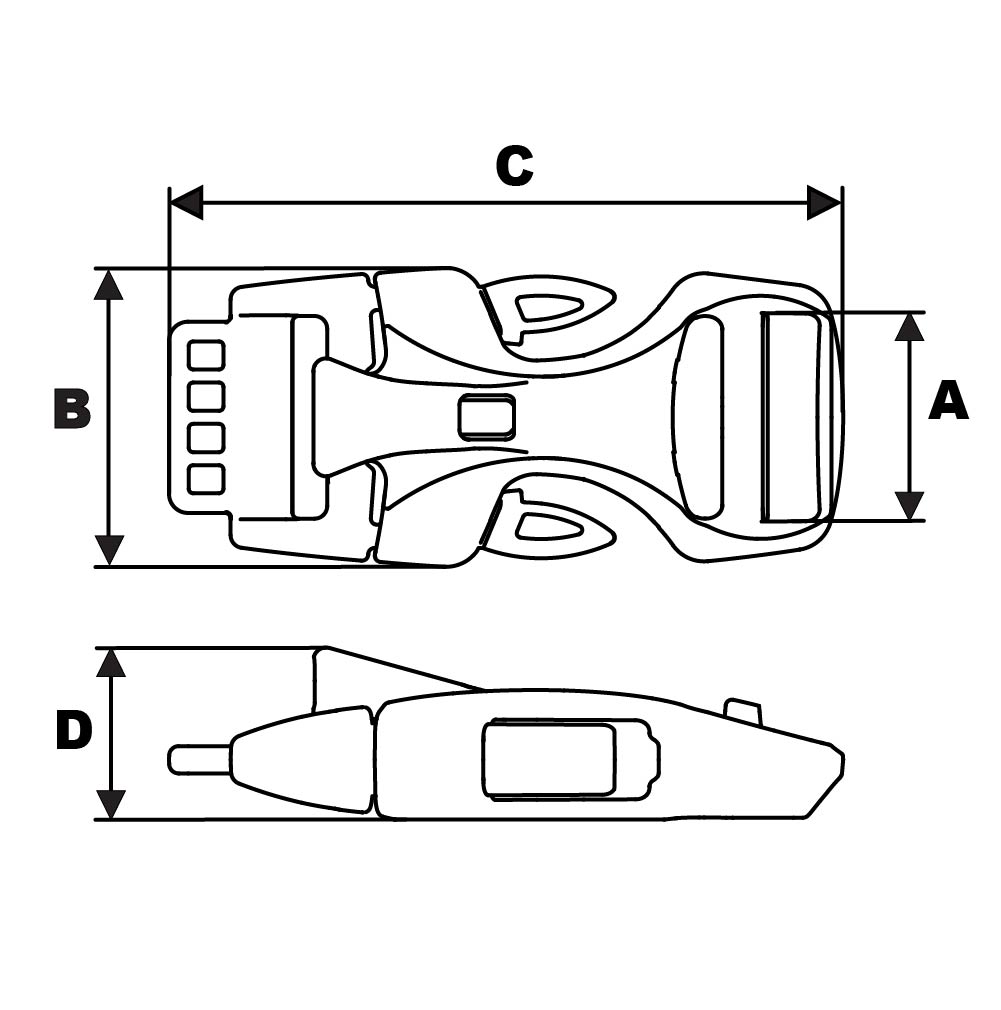

Description | Component P/N | MATERIAL | COLOR | A | B | C | D |
---|---|---|---|---|---|---|---|
WhistleLoc LS 16mm Body | (408-0510) | Acetal | Black | 16.0 | 23.6 | 52.7 | 13.5 |
WhistleLoc LS 16mm Latch | (408-0520) | Acetal | Black | 16.0 | 23.6 | 52.7 | 13.5 |
WhistleLoc LS 20mm Body | (408-1510) | Acetal | Black | 20.5 | 27.4 | 54.3 | 15.0 |
WhistleLoc LS 20mm Latch | (408-1520) | Acetal | Black | 20.5 | 27.4 | 54.3 | 15.0 |
